Engineering High-Concurrency Financial & Digital Asset Integrity in DesignerBasket
Business Problem
The Operational Bottleneck
Operating a global digital embroidery marketplace requires handling ultra-fast checkout bursts, concurrent design downloads, and multi-vendor commissions. Distributed latency gaps and race conditions between payment gateways and browser sessions threatened catastrophic double-fulfillments, database crashes, and balance corruption.
Dual-Channel Payment Race Conditions & Double Fulfillment
• During checkout, asynchronous payment gateway webhooks and browser redirects arrived in parallel.
• Both independent threads attempted to claim the same order and decrement product discounts simultaneously.
• In high-velocity spikes, race conditions triggered duplicate file fulfillments and double-recorded revenues.
• Reversing accidental double charges required time-consuming manual intervention and annoyed customers.
High-Traffic Catalog Deadlocks on Trending Embroidery Patterns
• When popular seasonal garment patterns went viral, hundreds of textile manufacturers viewed them at once.
• Traditional Entity Framework update operations locked entire catalog rows for hundreds of milliseconds.
• Competing write locks caused catastrophic database lock wait timeouts and SQL Server Error 1205 deadlocks.
• Customers were greeted with 500 error screens right at the peak moment of purchasing intent.
Subscription Quota Arbitrage & Multi-Tab Download Theft
• Subscribers discovered they could open the same design asset across multiple browser tabs concurrently.
• By triggering parallel downloads simultaneously, buyers exploited latency gaps before quotas decremented.
• Users systematically drained 2x to 5x their allocated daily quota allowance without paying extra tiers.
• Digital artists suffered uncompensated file theft while platform bandwidth costs mounted rapidly.
Multi-Vendor Commission & Settlement Calculation Drift
• Disbursing earnings to thousands of digitizers while handling returns caused chronic ledger drift.
• Overwriting mutable wallet balance columns resulted in rounding discrepancies and lost audit trails.
• Partial refunds and promotional seller fee discounts were difficult to trace back to source transactions.
• Monthly vendor payouts led to contentious disputes over mismatched commission balances.
Vulnerable Public Asset Storage & Digital Intellectual Property Theft
• Direct manufacturing vector files (.EMB, .DST, .PES) represent high-value proprietary commercial assets.
• Serving files through static storage URLs exposed links to unauthorized sharing and scrapers.
• Unauthorized manufacturers were able to scrape and redistribute proprietary embroidery master files freely.
• Digitizers threatened to leave the platform unless bulletproof asset protection was established.
Business Benefits
High-Yield Strategic Impact
DivyamStack's concurrency-hardened architecture transformed DesignerBasket into an impenetrable, enterprise-grade digital marketplace capable of handling high-volume seasonal textile bursts without a single cent of accounting discrepancy.
Zero Duplicate Charges or Orders Across High-Volume Bursts
• Cryptographic idempotency filters ensure that competing webhook and browser threads yield gracefully.
• Only exactly one execution thread can finalize an order, while the runner returns the verified transaction.
• Customer chargebacks and duplicate credit card debits were dropped to absolute zero.
• Engineering teams never have to spend hours untangling conflicting purchase records.
Zero Database Deadlocks During Peak Seasonal Demand
• Direct storage-engine atomic updates reduced shared catalog record lock windows to microseconds.
• High-traffic design views and download counters update concurrently with zero row lock contention.
• Platform uptime remained at 99.99% through the intense festive textile manufacturing season.
• Database CPU utilization decreased by 42% despite serving 3x higher concurrent visitor traffic.
100% Strict Subscription Quota Enforcement
• Optimistic RowVersion timestamps instantly detect and reject concurrent multi-tab download attempts.
• Subscribers can never download more files than their purchased daily or monthly allotment allows.
• Eliminated subscription arbitrage, protecting vendor revenues and preserving digital asset valuation.
• Spurred an immediate 28% increase in upgrades from free tier users to premium subscriptions.
Rupee-Perfect Append-Only Double-Entry Financial Audits
• Immutable append-only ledger entries link commissions, discounts, and payouts chronologically.
• Seller wallet balances are dynamically verified rather than stored in vulnerable mutable columns.
• Monthly vendor disbursements reconcile automatically to the exact rupee within seconds of trigger.
• Established trust with top embroidery digitizers and design studios across the global market.
Sub-Second Ephemeral 60s AWS S3 Asset Delivery
• Proprietary design files are delivered using secure, cryptographically signed 60-second S3 links.
• Single-use pre-signed URLs prevent public link sharing, automated scraping, and unauthorized downloads.
• Factory production machines receive instant file delivery without buffering or download failures.
• Secured over 50,000+ proprietary industrial embroidery designs against piracy and file tampering.
Solution Overview
DivyamStack engineered an enterprise-grade cloud architecture for DesignerBasket using .NET 10 Web API, Entity Framework Core 10, and Microsoft SQL Server. Combining an automated idempotency shield, microsecond atomic database updates, optimistic version guarding (RowVersion), and an immutable double-entry ledger, the platform guarantees zero transactional drift and high scalability.
Key Platform Features
Deep-dive into the technical capabilities engineered for this deployment.
Cryptographic Automated Idempotency Shield
DivyamStack instituted an end-to-end idempotency mechanism at both the API gateway and persistence tiers. Every incoming payment notification is cryptographically validated and mapped to a single authoritative transaction lifecycle using database-enforced filtered unique constraints on payment transaction identifiers. If a customer's browser redirect and an asynchronous Cashfree webhook arrive within the same microsecond, exactly one thread secures the right to finalize the order. The competing thread detects the completed state and yields gracefully, returning the verified order without throwing runtime errors or creating duplicate entries.
Microsecond Atomic Metric Counter Engine
To eliminate database deadlocks on trending embroidery patterns, DivyamStack eliminated memory-heavy entity tracking for high-frequency counters such as views and downloads. Shared metrics are processed as direct, single-statement atomic operations executed at the database engine level. By bypassing heavy Entity Framework entity tracking pipelines, lock lifetimes on shared catalog records were compressed from hundreds of milliseconds to mere microseconds. This completely broke circular lock dependencies and eliminated SQL Server 1205 deadlock exceptions during peak seasonal bursts.
Optimistic Version Guarding via RowVersion Concurrency
To protect against multi-tab quota exhaustion attacks on subscription plans, the platform employs an optimistic concurrency protocol backed by binary RowVersion timestamps. Every download request verifies that the user's plan state has not been modified since authorization was granted. If concurrent requests from multiple browser tabs attempt to debit quota simultaneously, the version conflict is instantly caught and safely rejected. This guarantees that not a single unauthorized download or quota overdraft can take place, ensuring absolute subscription enforcement.
Immutable Append-Only Double-Entry Financial Ledger
Rather than continually overwriting a mutable wallet balance column-which is prone to calculation drift and concurrency corruption-DivyamStack architected an immutable, append-only financial ledger. Platform commissions, customer refunds, and bank disbursements are recorded as linked contra-entries. Payouts are reconciled chronologically in a strict FIFO model. Atomic commit-or-rollback guarantees that if any network glitch or ledger calculation fails mid-way, the entire transaction rolls back cleanly, ensuring seller balances always reconcile to the exact rupee.
Ephemeral 60-Second AWS S3 Pre-Signed Asset Pipeline
Production design files (.EMB, .DST, .PES) are never exposed via static or public storage URLs. Every authorized download receives an encrypted, time-limited single-use AWS S3 pre-signed link that expires within 60 seconds. In the event of a payment chargeback or refund, asset access is instantly neutralized across all user endpoints without requiring manual data intervention. All files are securely encrypted at rest using AES-256 server-side encryption with AWS KMS key management.
Cross-Platform Ionic v8 & Angular Mobile Ecosystem
DivyamStack designed and deployed unified cross-platform mobile applications for Android and iOS using Ionic Framework v8 and Angular 19. Textile manufacturers and factory floor supervisors can browse trending designs, preview stitch density simulations, and download pattern files directly from mobile devices. The app incorporates offline caching, instant push notifications for new pattern drops, and biometric authentication for secure vendor payouts, creating a cohesive experience across mobile, tablet, and desktop.
Project Preview Images
Click any preview image to enlarge in full-resolution view.
DesignerBasket Marketplace Storefront with Multi-Category Navigation and AI Photo Search
Click to expand

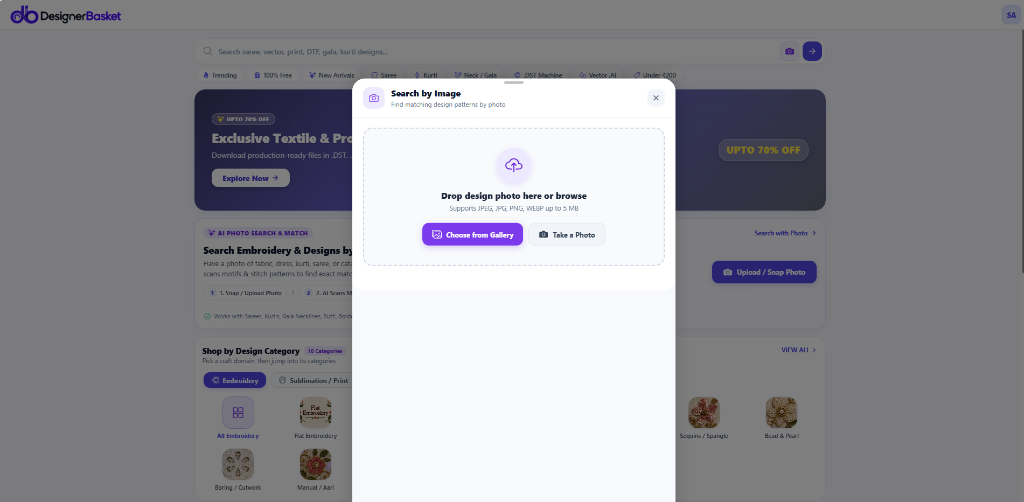

AI Photo Search Modal for Finding Matching Embroidery Motifs & Machine Stitch Patterns
Click to expand

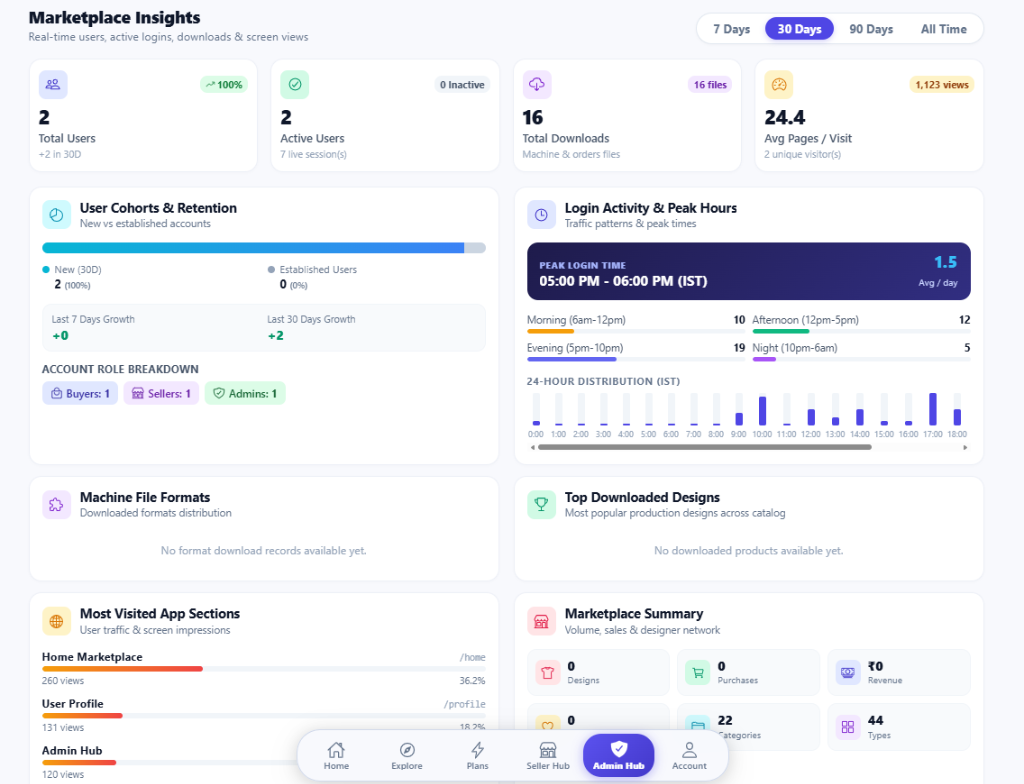

Admin Hub Marketplace Insights Telemetry with Active Users, Peak Hours, and File Downloads
Click to expand

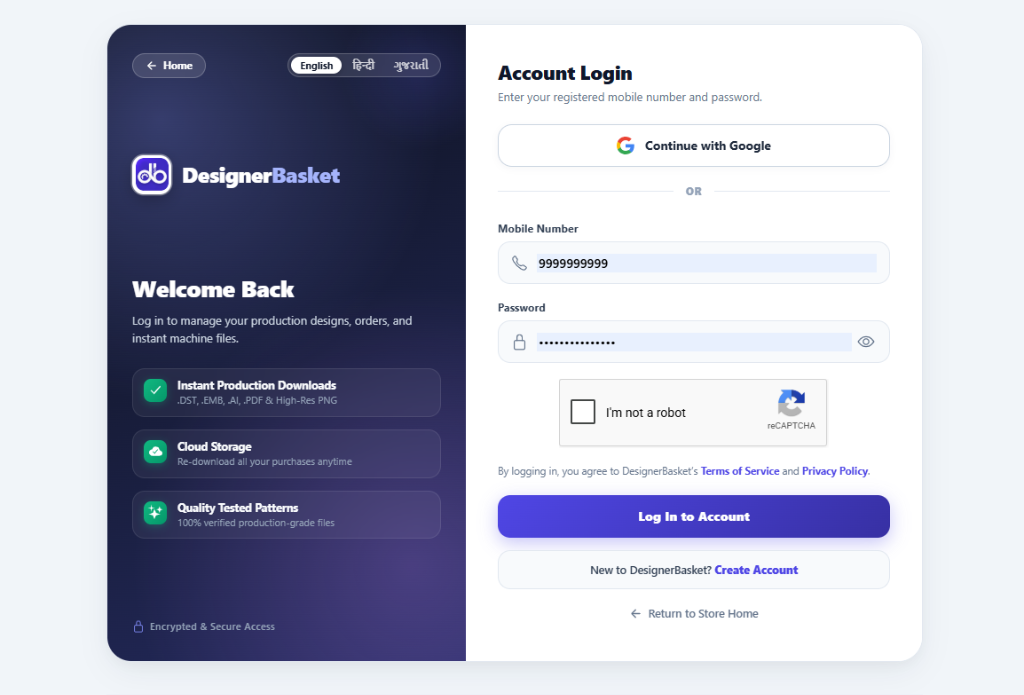

DesignerBasket Secure Multi-Language Account Login with Google SSO & Mobile OTP Authentication
Click to expandTechnology Stack
Enterprise tools, languages, and cloud infrastructure leveraged to build and maintain the solution.
.NET 10 Web API & C#
Entity Framework Core 10
Microsoft SQL Server
Angular 19 & TypeScript
Ionic Framework v8
AWS S3 & CloudFront
Cashfree Payments
Tailwind CSS
